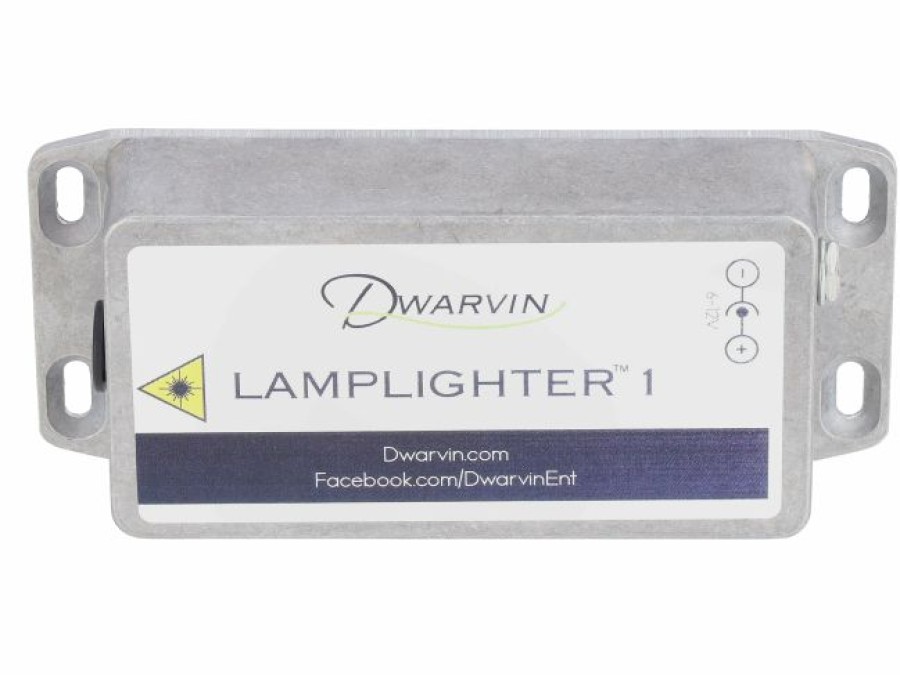

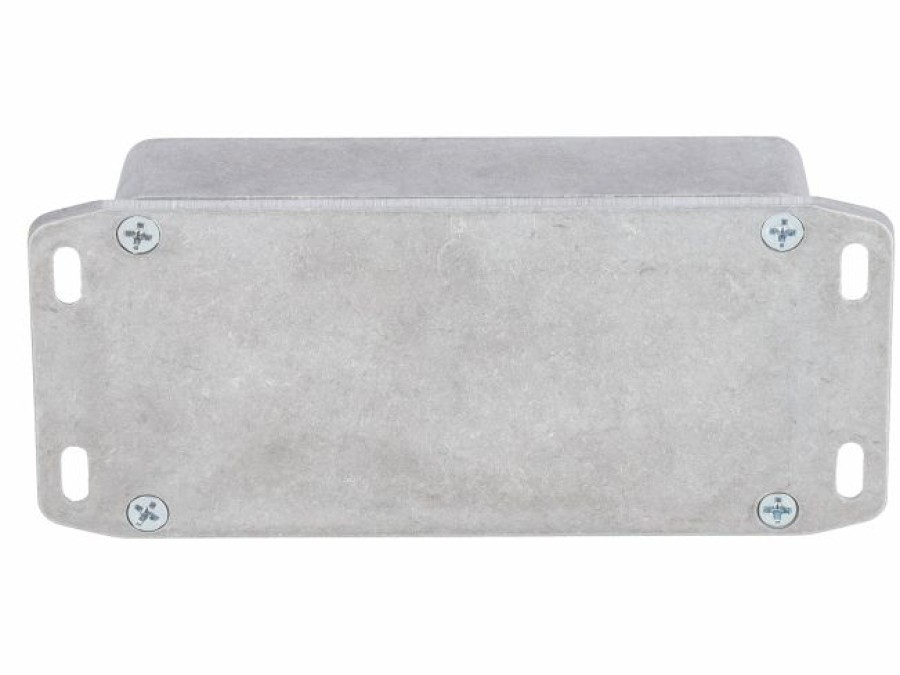

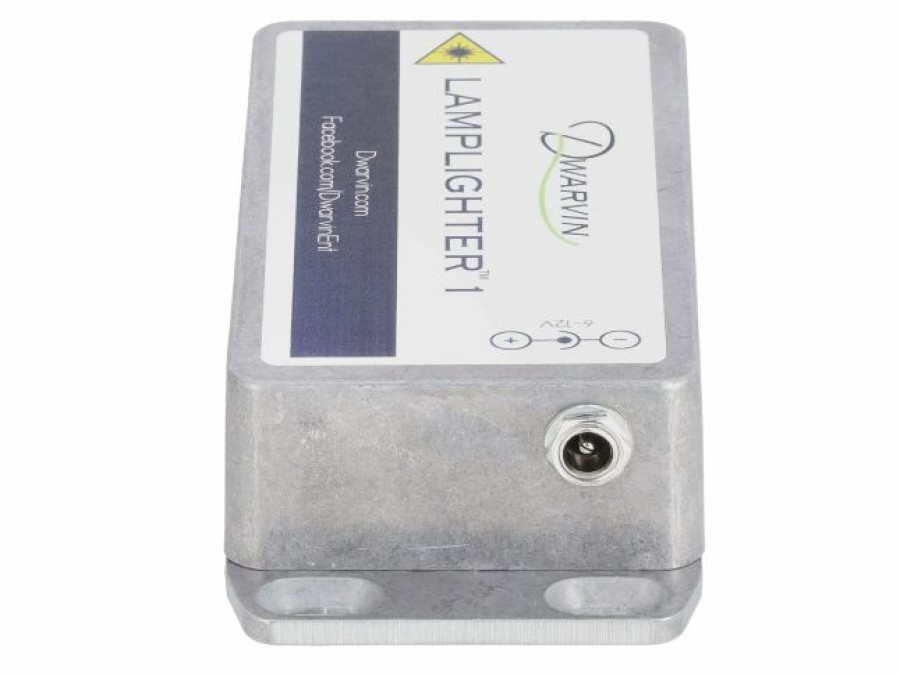

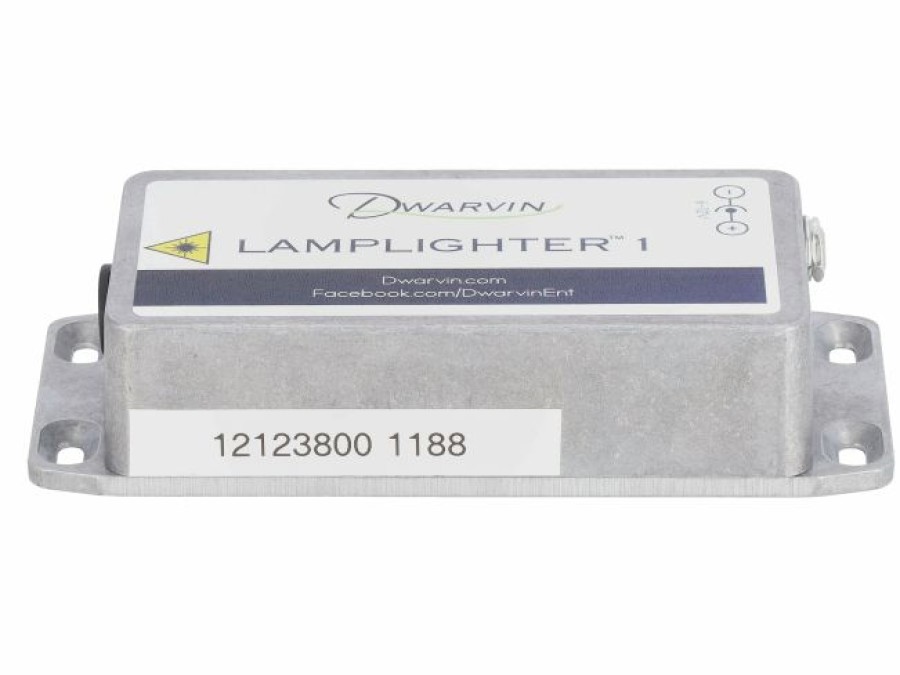

Layout * | Dwarvin Dv101 Lamplighter 1 For Fiber Lighting Systems

This Is A Dwarvin Dv101 Lamplighter 1. This Item Can Be Used With All Scales.

This Item Is One Component Used With The

Dwarvin Street Lamps, Billboards, And Building Light System

To View The Other Components Of The System And Installation, Click On The Following Links

-Dwarvin Street Lamps, Billboards, And Building Light System

-How It Works

-Types Of Lighting Systems

-All About Fiber Cables

The Lamplighter System Is An Innovative System Using Fiber Optics.

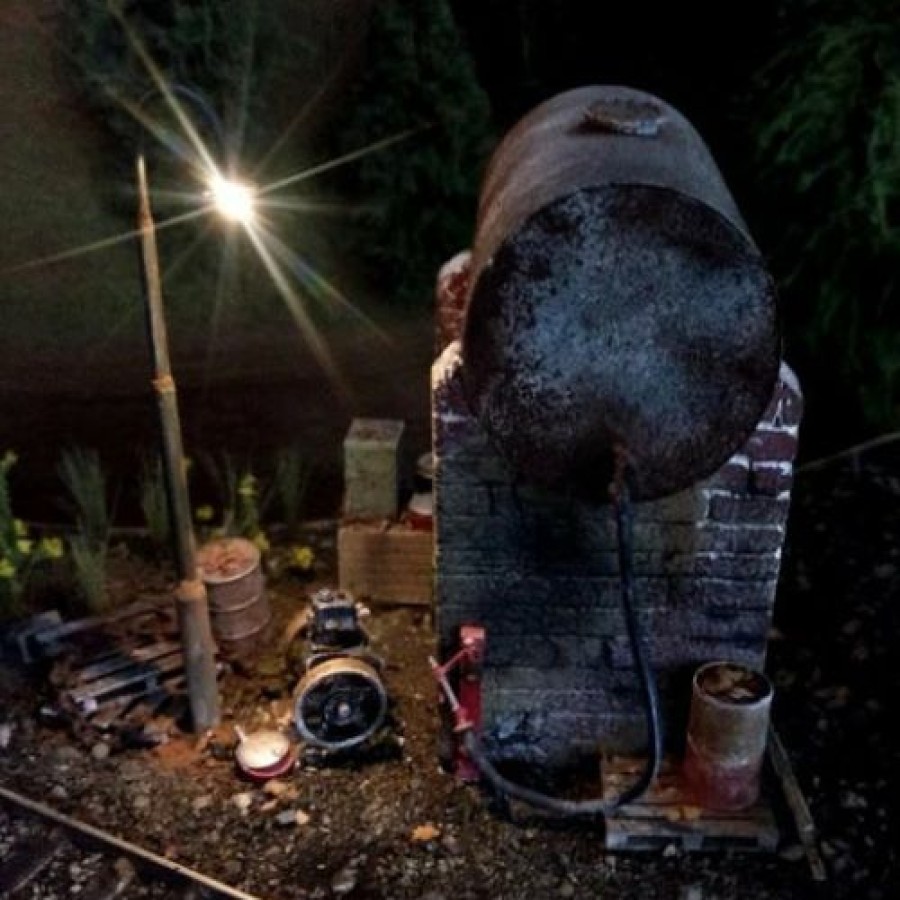

Based On Using A Very Intense Light System Underneath The Train Table (Or Doll House Or Whatever), Fibers Are Then Run Into The Space To Be Illuminated. The Light Source Is 30+ Times Brighter Than The Typical Led Used In Hobby Applications, Which Allows The Lighting Of Buildings And Creating Street Lamps That Will Really Glow Well. The Lighting Of Even A Single Fiber Is Intense.

The Light Output Of A Single 1.5Mm Fiber Is Equivalent To A Typical 20Ma Led.
To Light A Structure All One Has To Do Is Snip Off The Appropriate Length Of An Optical Fiber, Insert One End Into The Lamplighter Box And Run The Other End Up Through A Hole Into The Structure. A Grommet Grabs Hold Of The Fibers So They Are Held In Place. Each Lamplighter Box Allows You To Light Up Multiple Structures, Making The Addition Of Lights Into Many Structures Very Simple.

How Many Fibers Can You Fit Into The Box?
13 Of The 1.5Mm Fibers
28 Of The 1.0Mm Fibers
20 Of A Mixture Of The Above Two Fibers.

For Ho Layouts We Recommend Using 1.5Mm Diameter Fibers To Light Buildings, And 1.0Mm For Street Lamps.
For N Scale Layouts We Recommend Using 1.0Mm Diameter Fibers To Light Buildings, And 0.75Mm For Street Lamps.
For O Gauge Layouts We Recommend 1.5Mm Fiber For Both Buildings And Street Lamps.
You Can Use 0.75 And 0.5Mm For Lighting Trees And Other Applications.

What Do You Get?
Lamplighter 1
Power Supply (A 6V Wallwart Power Supply Wall Connector Selected Based On Country Of Destination And Works On Both 110 And 240V, 50 And 60Hz Power).

Dimensions:
L: 4 7/16 (11.2Cm) W: 2 3/8 (6.1Cm) H: 1 1/4 (3.2Cm)
Length With Flanges: 5 7/16 (13.8Cm)

Benefits:
No Wiring Needed!!
Add Light To Structures In A Matter Of Seconds.
Cost Effective When Compared With Other Commercial Systems.
No Heat Is Dissipated In Or Near The Buildings Being Illuminated.
Lighting Effects Are Limited Only By Your Imagination

Condition: Factory New (

C-9

)
Operational Status:

Functional

Original Box: Yes (

P-9

)

Manufacturer: Dwarvin
Model Number: Dv101

Scale/Era: Lighting Systems
Model Type: Hardware & Power
