This Is A Dwarvin Dvdfl202 N Lamplighter Dfl W/O Power Supply

This Item Is One Component Used With The Following Lighting Systems

-Dwarvin Integrated Railroad Crossing System

-Dwarvin Integrated Block Detection System

To View The Other Components Of The System And Installation, Click On The Following Links
How It Works

-Dwarvin Integrated Railroad Crossing Detection System

How It Works

-Dwarvin Integrated Block Detection System

-Types Of Lighting Systems

-All About Fiber Cables

This Product Is Part Of The Light Module Of A Kit That Allows You To Integrate Block Signals Or 2 Railroad Crossings Together With 2 Side-On Detectors And 1 Crossing Bell All Controlled By The Lamplighter Dfl Unit.

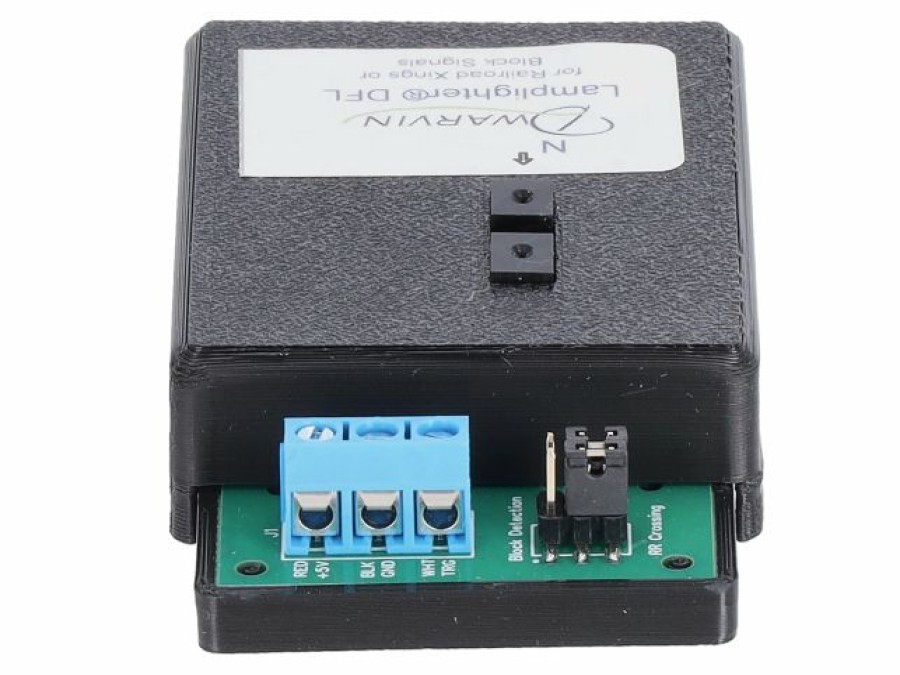

There Is Absolutely No Programming Nor Soldering Required. The 3 Wires From The Detectors And Crossing Bell Need To Be Attached To The Dfl Unit Using Screws Built Into It. It Couldn’T Be Easier.

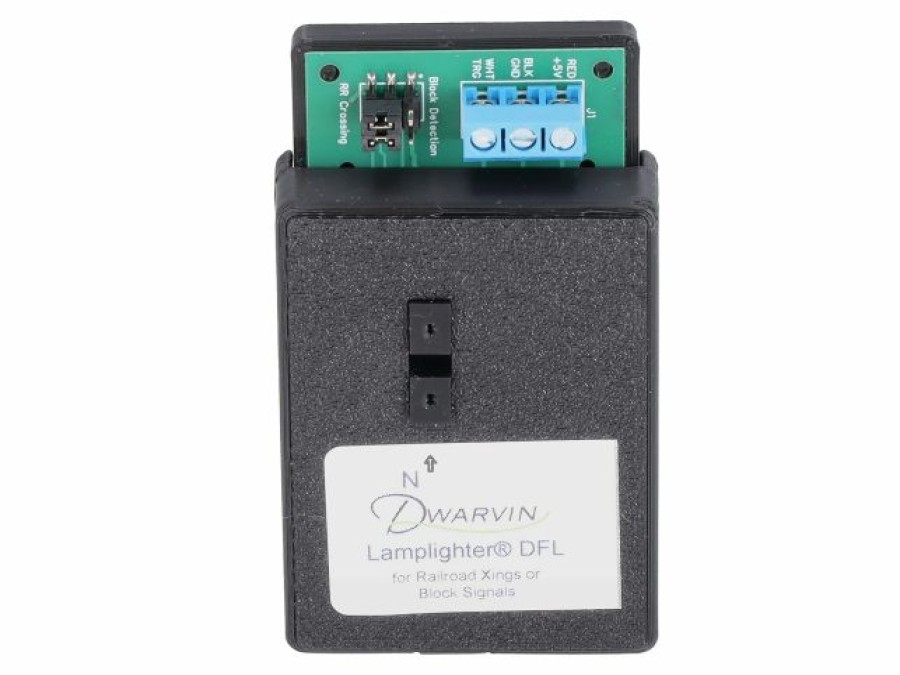

The Fibers Are Inserted Into Two “Chimneys”. Each Can Hold Either A 1.0Mm Fiber For The Ho Rr Crossings/Block Signals Or 0.75Mm Fiber For The N Rr Crossings/Block Signals.

This Item Does Not Include The Power Supply. You Can Use Your Dc Bus From Your Layout Which Must Be >7V With Center Positive Wiring Into The Power Jack Connector Provided.

Benefits:
No Wiring Needed!!
Add Light To Structures In A Matter Of Seconds.
Cost Effective When Compared With Other Commercial Systems.
No Heat Is Dissipated In Or Near The Buildings Being Illuminated.
Lighting Effects Are Limited Only By Your Imagination

Condition: Factory New (

C-9

)
Operational Status:

Functional

Original Box: Yes (

P-9

)

Manufacturer: Dwarvin
Model Number: Dvdfl202

Scale/Era: Lighting Systems
Model Type: Hardware & Power
