Layout * | Dwarvin Dvirrxk202 N Railroad Crossing Kit Lamplighter Dfl W/O Power Supply

This Is A Dwarvin Dvirrxk202 N Integrated Railroad Crossing Kit Using Lamplighter Dfl Without Power Supply

This Item Is A Kit Used With The

Dwarvin Integrated Railroad Crossing System

To View The Other Components Of The System And Installation, Click On The Following Links

-How It Works

-Types Of Lighting Systems

-All About Fiber Cables

This Kit Includes

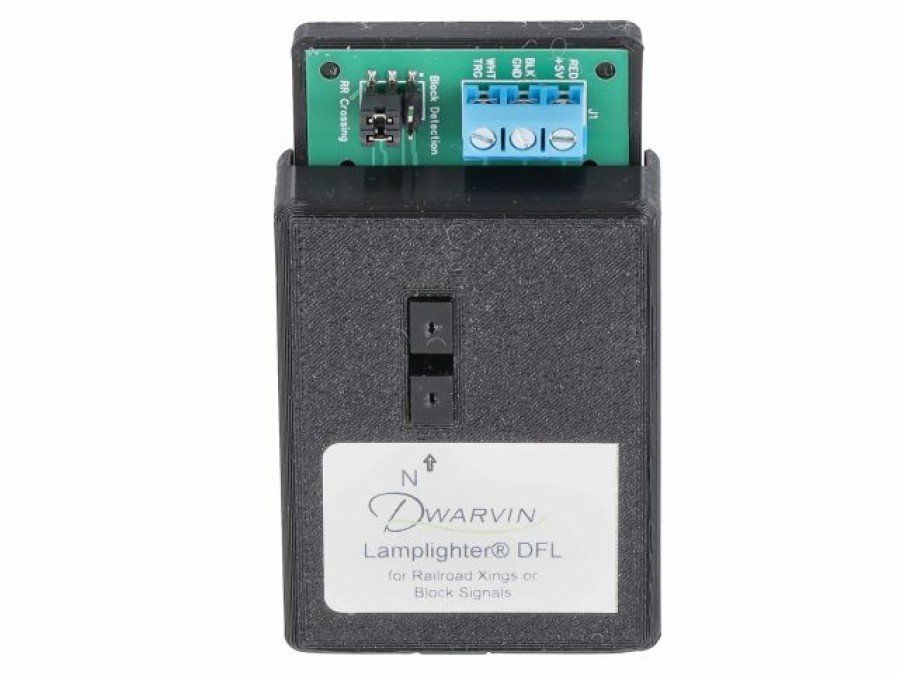

Lamplighter Dfl
2 Railroad Crossings
2-Side-On Detectors
Crossing Bell

This Product System Provides All That You Need To Integrate 2 Railroad Crossings Together With 2 Side-On Detectors And 1 Crossing Bell All Controlled By The Lamplighter Dfl Unit.

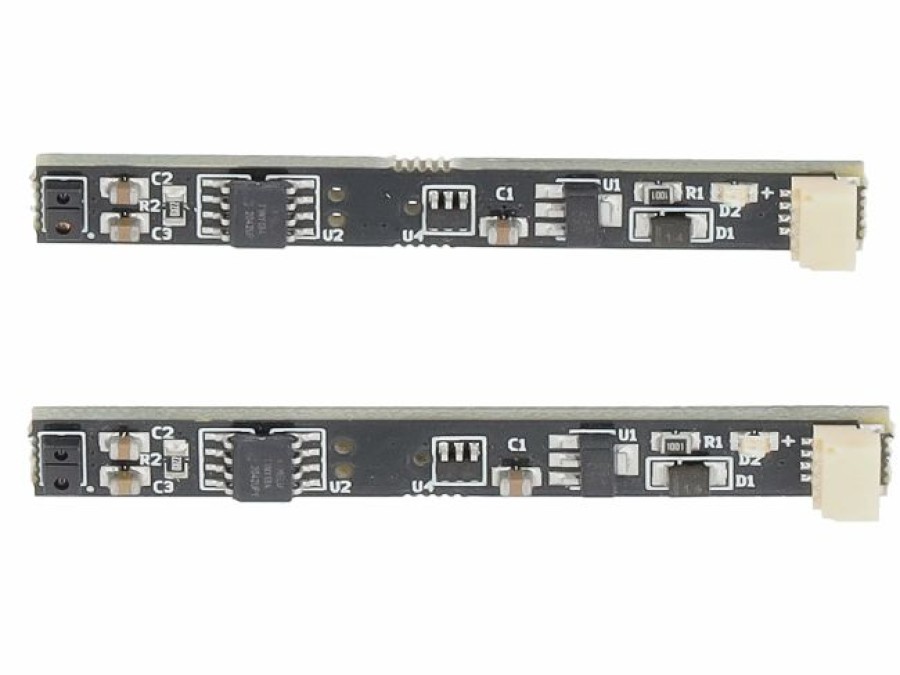

The Detectors Are Of The Pulsed Infrared Kind So They Are Insensitive To The Ambient Lighting. They Stay On As Long As They “See” An Object. The Dfl Unit In Turn Turns Off 5 Seconds After All Detectors Return To Their Waiting State.

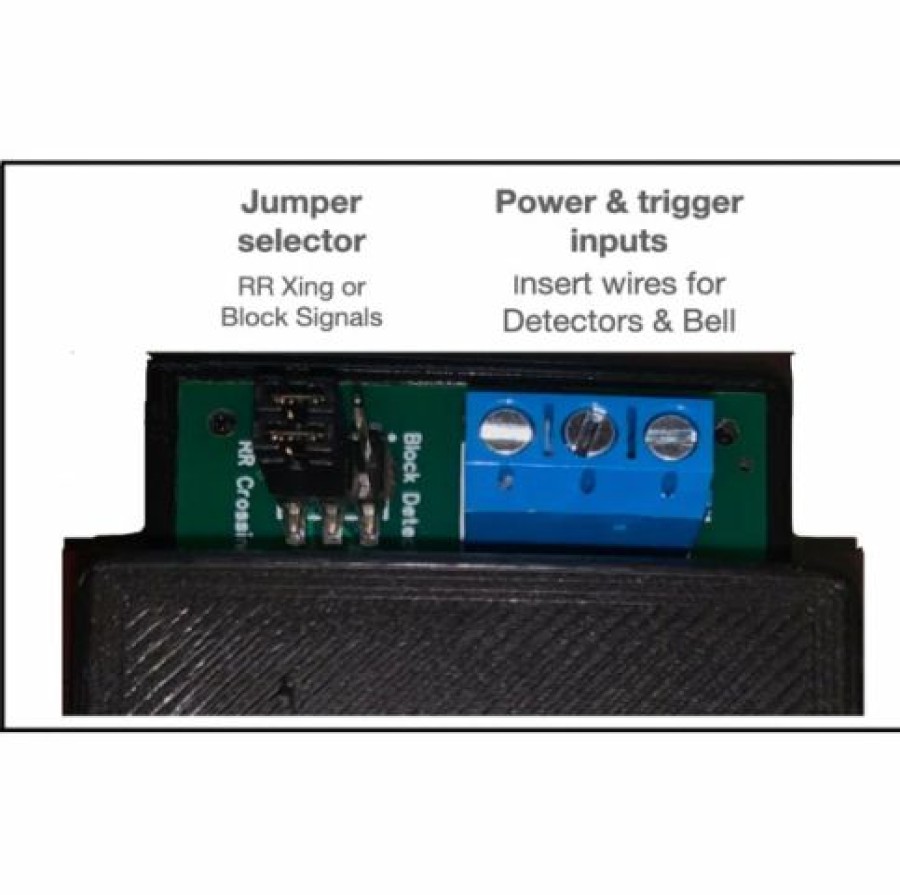

There Is Absolutely No Programming Nor Soldering Required. The 3 Wires From The Detectors And Crossing Bell Are Attached To The Control Unit Using Screws Built Into The Control Unit. It Couldn’T Be Easier.

The Fibers Are Inserted Into Two “Chimneys”. Each Can Hold Either A 1.0Mm Fiber For The Ho Rr Crossings Or 0.75Mm Fiber For The N Rr Crossings, Or 1.5Mm Fibers For O Rr Crossings.

When Not Using The Power Supply You Can Use Your Dc Bus From Your Layout Which Must Be >7V With Center Positive Wiring Into The Power Jack Connector Provided In The Kit And You Are Done.

Benefits:
No Wiring Needed!!
Add Light To Structures In A Matter Of Seconds.
Cost Effective When Compared With Other Commercial Systems.
No Heat Is Dissipated In Or Near The Buildings Being Illuminated.
Lighting Effects Are Limited Only By Your Imagination

Condition: Factory New (

C-9

)
Operational Status:

Functional

Original Box: Yes (

P-9

)

Manufacturer: Dwarvin
Model Number: Dvirrxk202

Scale/Era: Lighting Systems
Model Type: N Scale

This Video Is Included Only To Show The General Features Of This Model And Was Not Filmed With The Exact Item Advertised.

The Trainz Sku For This Item Is P12642543.

Trainz Product Id: 12642543
