Layout * | Dwarvin Dvsk203 Lamplighter 2 Starter Kit With 1.5Mm & 1.0Mm Fiber Mix Pack

This Is A Dwarvin Dvsk203 Lamplighter 2 Starter Kit With 1.5Mm & 1.0Mm Fiber Mix Pack. This Can Used With All Scales.

This Item Is A Kit Used With The

Dwarvin Street Lamps, Billboards, And Building Light System

To View The Other Components Of The System And Installation, Click On The Following Links

-Dwarvin Street Lamps, Billboards, And Building Light System

-How It Works

-Types Of Lighting Systems

-All About Fiber Cables

This Is The Big Brother Of The Lamplighter 1 Product, Providing A 100% Increase In Capacity Of Fibers.

What Do You Get In A Starter Kit?

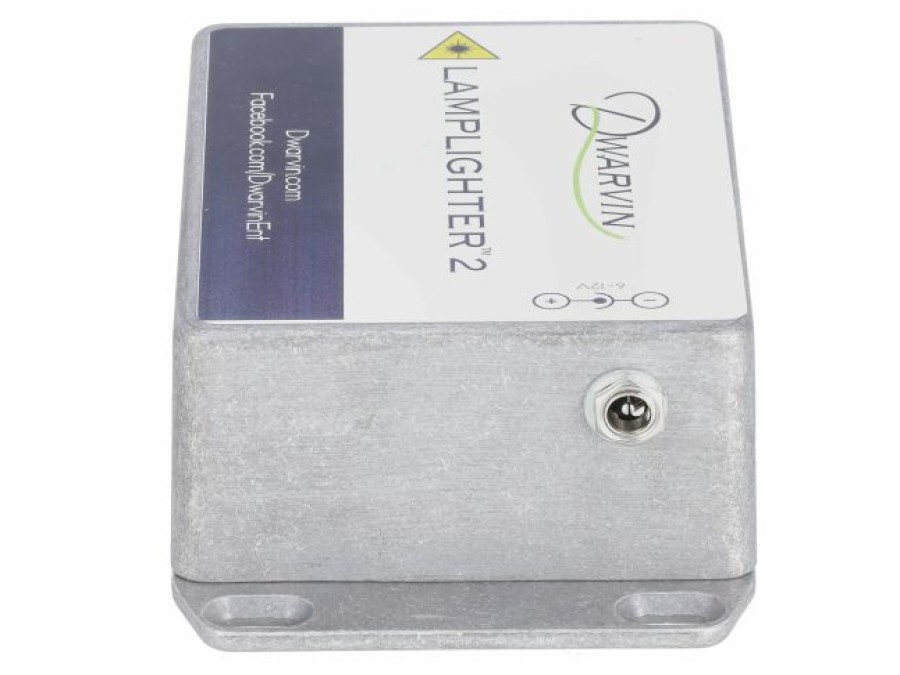

Lamplighter 2
Power Supply (A 6V Wallwart Power Supply Wall Connector Selected Based On Country Of Destination And Works On Both 110 And 240V, 50 And 60Hz Power).
Mixed Pack Of Both Fibers

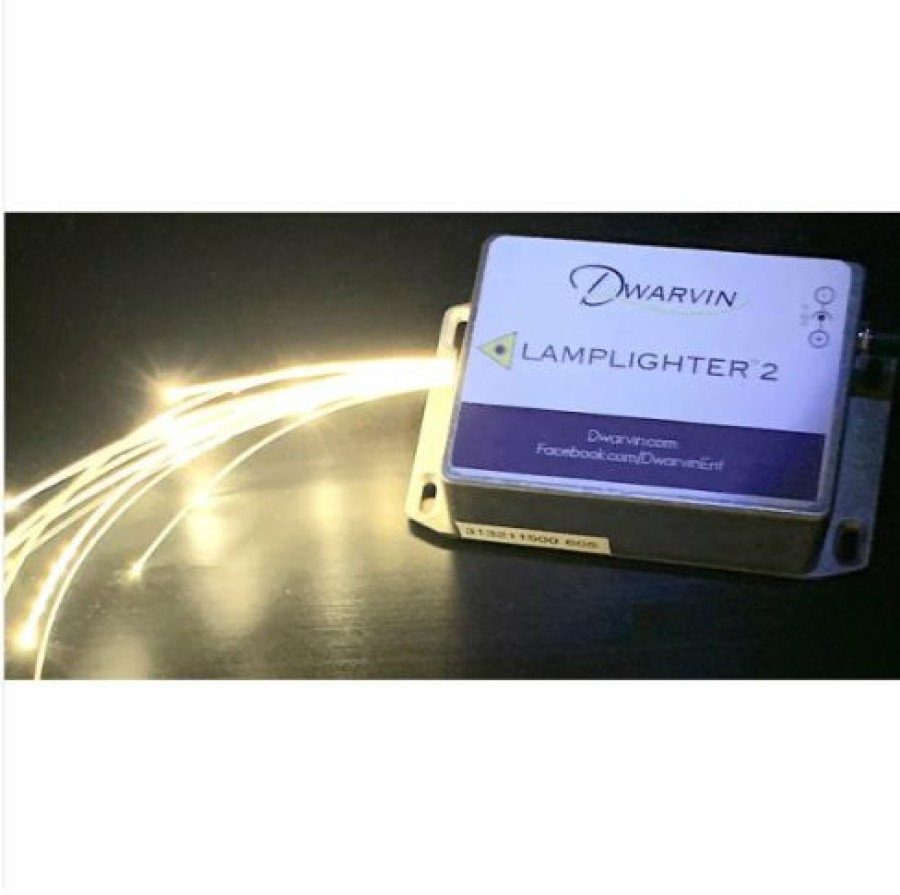

Model Train Lighting Can Be Very Tedious, But Not So With Fiber Optics! Indeed, The Lamplighter System Is An Innovative Lighting System Using Fiber Optics. Based On Using A Very Intense Light System Underneath The Train Layout (Or Doll House Or Miniatures Or Whatever), Fibers Are Then Run Into The Space To Be Illuminated. The Light Source Is 30+ Times Brighter Than The Typical Led Used In Hobby Applications, Which Allows The Lighting Of Buildings And The Creation Of Street Lamps That Will Really Glow Well. The Light Output Of A Single 1.5Mm Fiber Is Greater Than A Typical 20Ma Led.

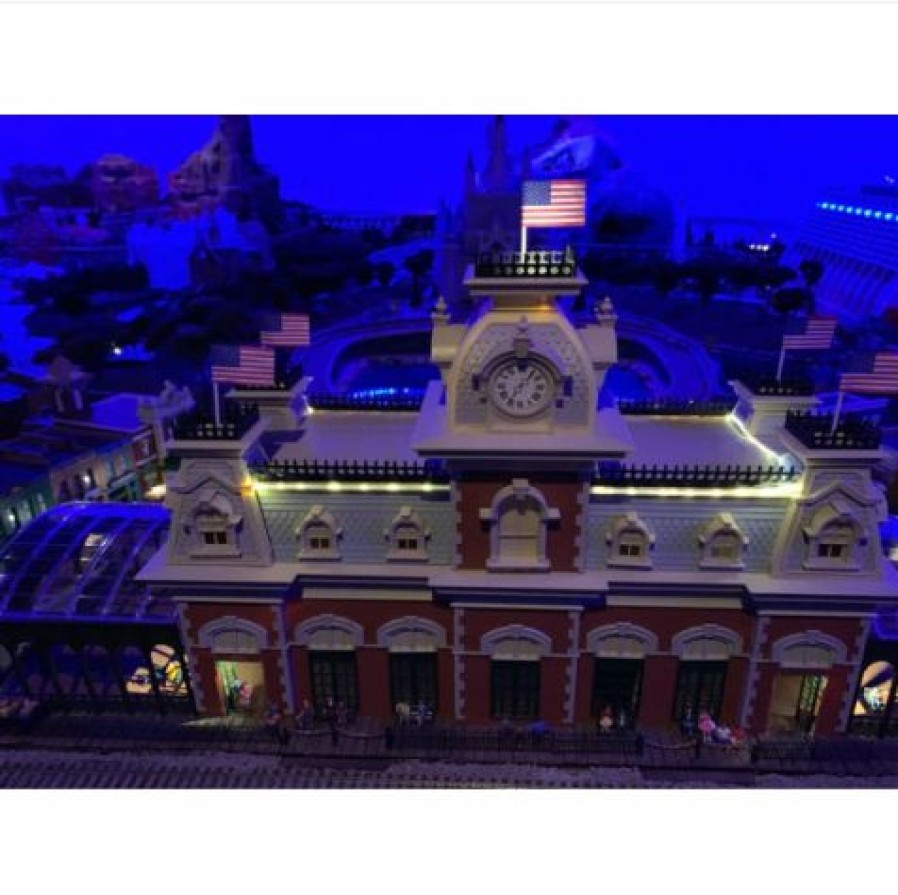

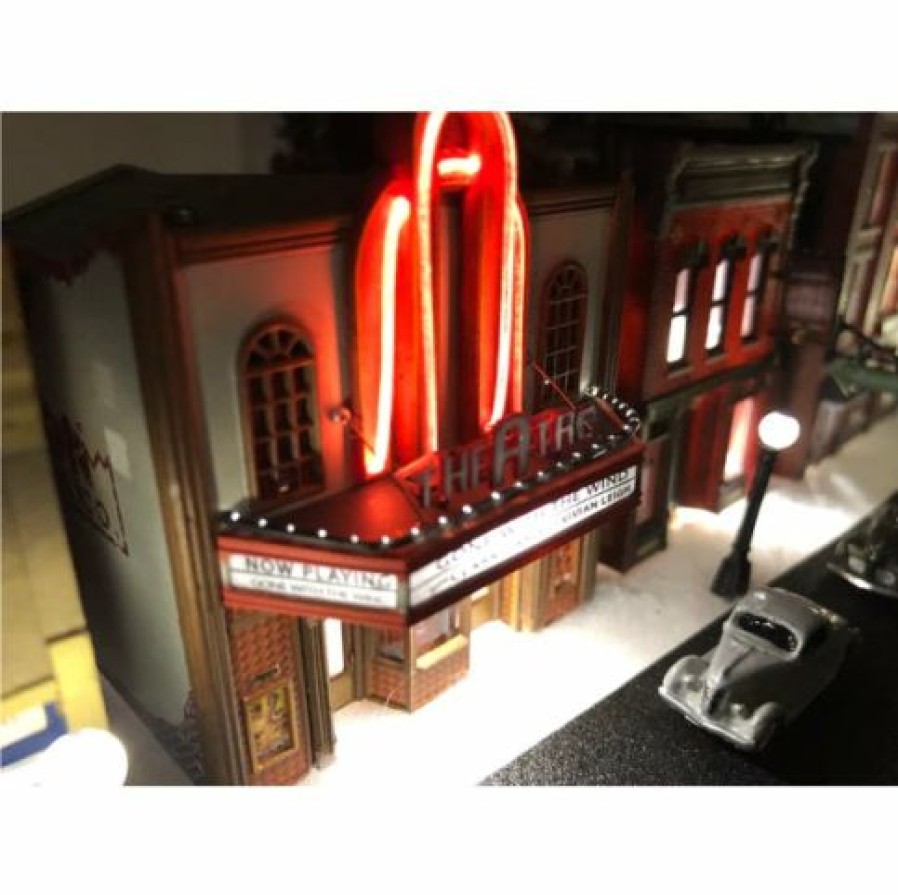

Your Model Train Scenery Will Come Alive With Fiber Optic Lighting.

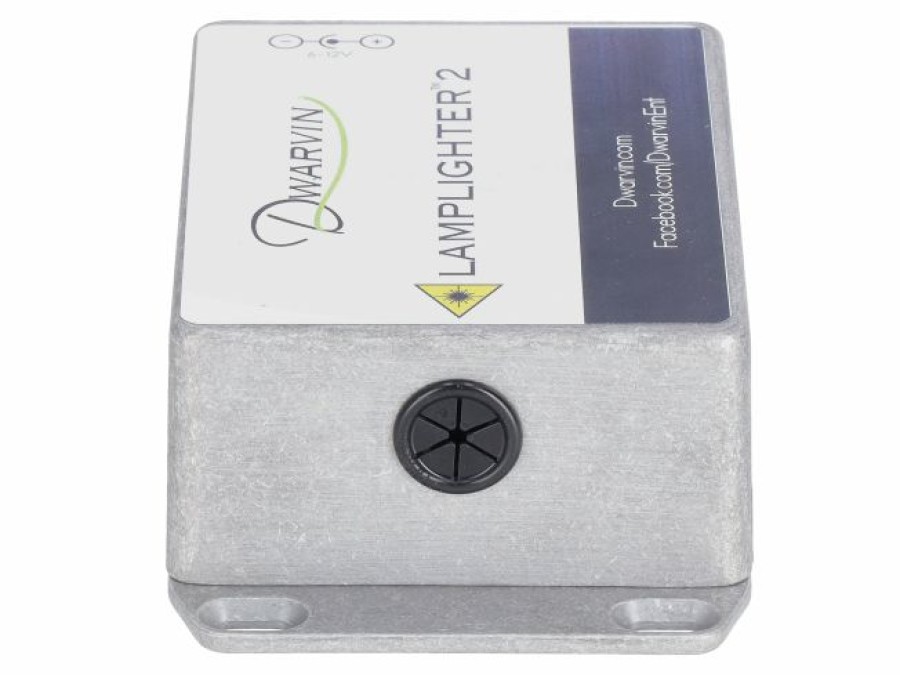

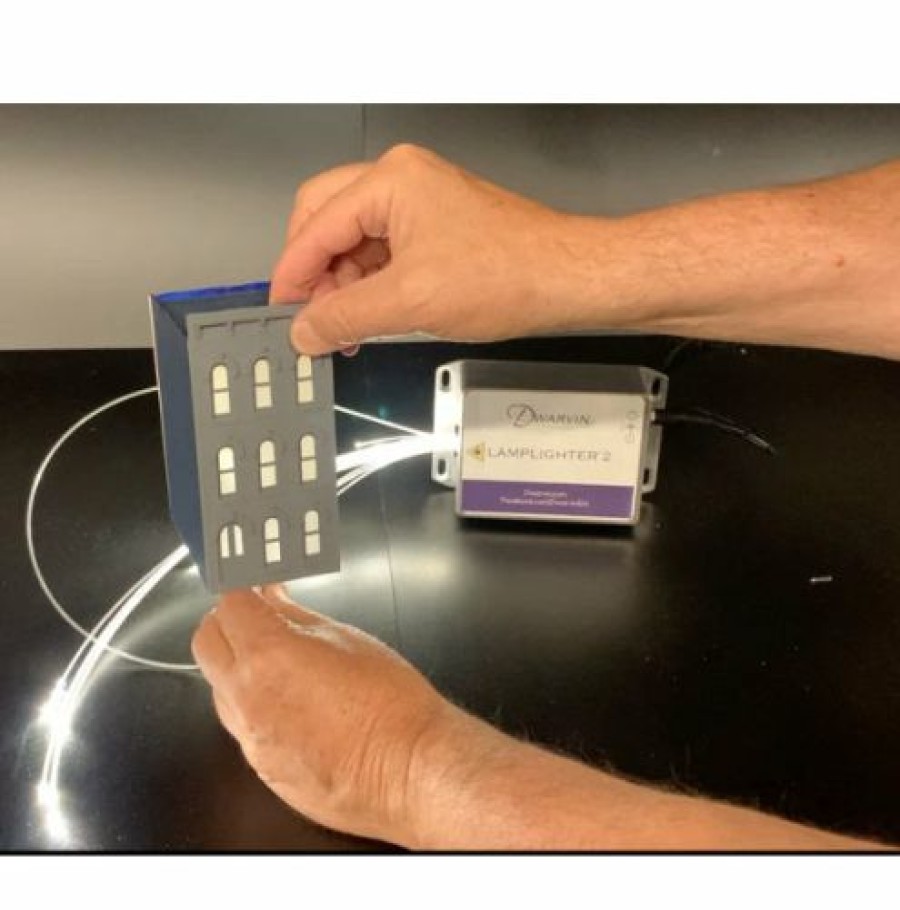

To Light A Structure All One Has To Do Is Snip Off The Appropriate Length Of An Optical Fiber, Insert One End Into The Lamplighter Box And Run The Other End Up Through A Hole Into The Structure. A Grommet Accepts The Fibers And Holds Them Inside The Box. Each Lamplighter Box Allows You To Light Up Multiple Structures, Making The Addition Of Lights Into Many Structures Very Simple.

There Are Many Different Techniques For Using Fiber Optics Which Allows The Modeler To Be Very Imaginative In Creating Lighting Effects.

How Many Fibers Can You Fit Into The Box?
26 Of The 1.5Mm Fibers
60 Of The 1.0Mm Fibers
40 Of A Mixture Of The Above Two Fibers.

For Ho Layouts We Recommend Using 1.5Mm Diameter Fibers To Light Buildings, And 1.0Mm For Street Lamps.
For N Scale Layouts We Recommend Using 1.0Mm Diameter Fibers To Light Buildings, And 0.75Mm For Street Lamps
For O Gauge Layouts We Recommend 1.5Mm Fiber For Both Buildings And Street Lamps.
You Can Use 0.75 And 0.5Mm For Lighting Trees And Other Applications.

Lamplighter 2 Dimensions:
L: 4 7/16 (11.2Cm) W: 3 1/4 (8.2Cm) H: 1 3/4 (4.4Cm)
Length With Flanges: 5 7/16 (13.8Cm)

Benefits:
No Wiring Needed!!
Add Light To Structures In A Matter Of Seconds.
Cost Effective When Compared With Other Commercial Systems.
No Heat Is Dissipated In Or Near The Buildings Being Illuminated.
Lighting Effects Are Limited Only By Your Imagination

Condition: Factory New (

C-9

)
Operational Status:

Functional

Original Box: Yes (

P-9

)

Manufacturer: Dwarvin
Model Number: Dvsk203

Scale/Era: Lighting Systems
Model Type: Hardware & Power

This Video Is Included Only To Show The General Features Of This Model And Was Not Filmed With The Exact Item Advertised.

The Trainz Sku For This Item Is P12642558.

Trainz Product Id: 12642558
