Layout * | Dwarvin Dvtsb2-2Np N Turnout Snap Bipolar 2 Wire 3 Dwarf Signals Kit No Power

This Is The Dwarvin Dvtsb2-2Np N Turnout Snap Bipolar 2 Wire 3 Dwarf Signals With No Power Supply

This Item Is A Kit Used With The

Dwarven Integrated Turnout Signal Systems Snap Bipolar 2 Wire

To View The Other Components Of The System And Installation, Click On The Following Links

-How It Works

-Types Of Lighting Systems

-All About Fiber Cables

This Kit Contains
-Turnout Snap Bipolar 2 Wire Controller
-3 Dwarf Signals

This System Is Designed To Integrate With Your Snap Bipolar 2 Wire Switch Machines, Most Notably The
-Kato
-Rokuhan
-Rapido Trains, And
-Any Others Using 2 Wire Snap Machines.

A Unique Feature Designed Into This System Is That It Remembers The Direction Of The Turnout From The Last Time It Was Used, Even When Power Has Been Interrupted.
Another Unique Feature Is That It Can Be Used With Either Ac Or Dc Power, Directly From The Turnout Power! You Can Also Cascade Each Controller So That You Only Need To Power One And All Are Powered.

The Assembly Couldn’T Be Simpler:

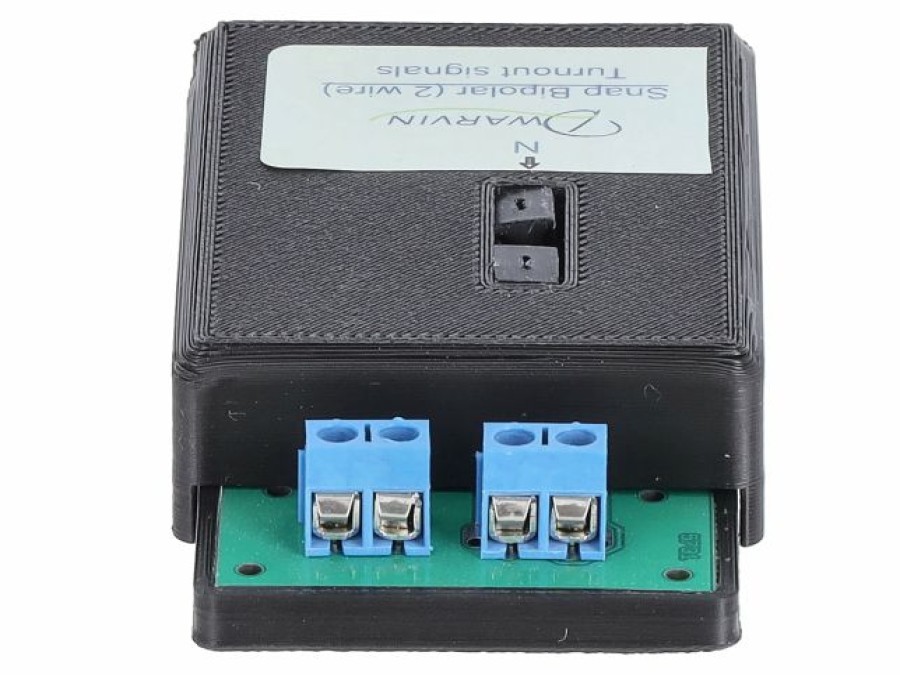

Connect 2 Wires From The Left Hand 2 Socket Connector On The Dwarvin Snap Controller To The Snap Machine Switch Control Unit No Soldering Needed.

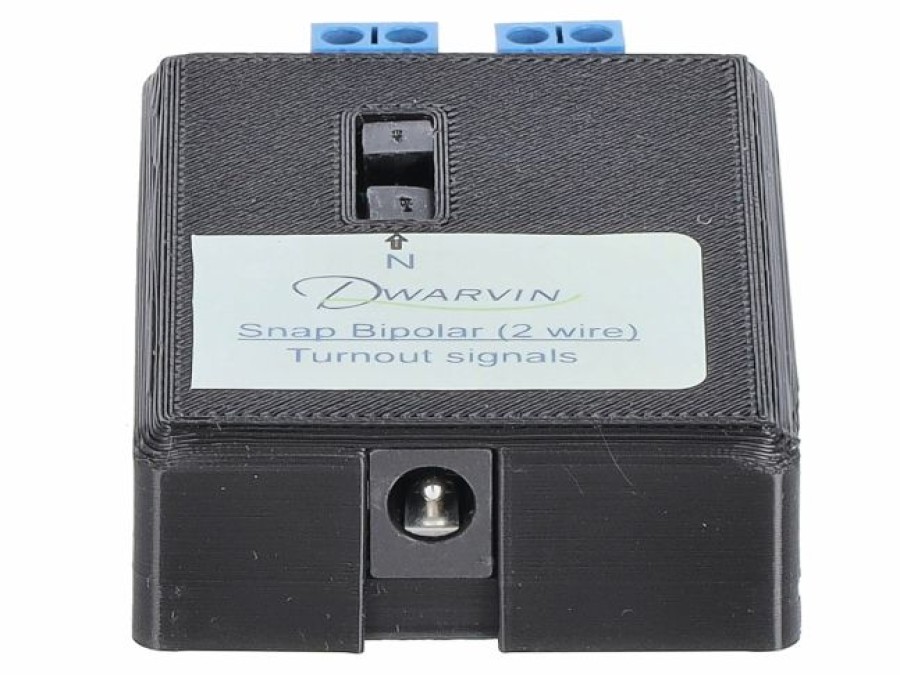

Add Power To The Dwarvin Snap Controller Either Using A 9V Supply (Barrel Connector) Or Directly From Your Ac Or Dc Bus Via The 2 Socket Connector On The Right Hand Side Of The Unit.

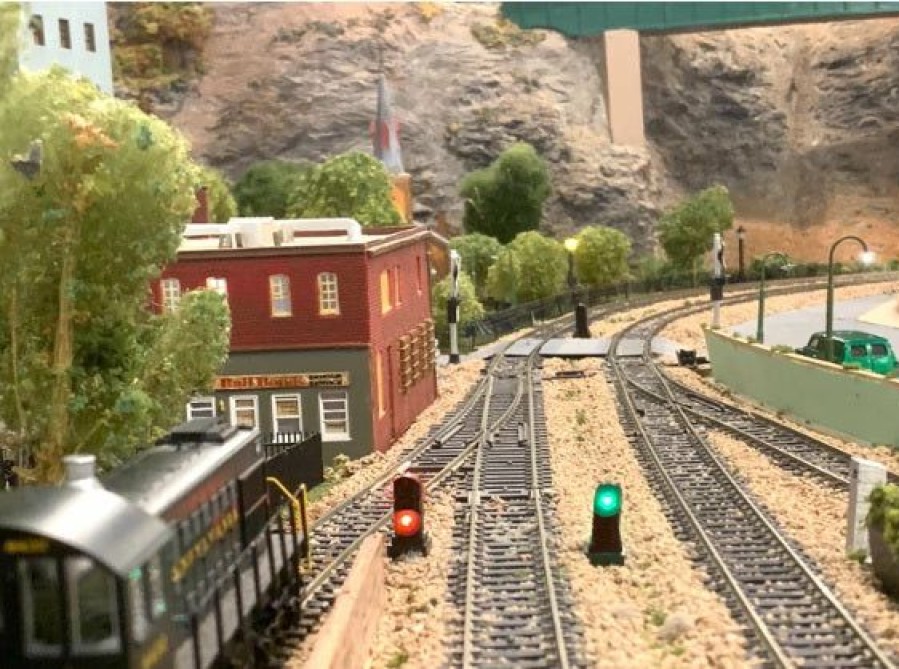

Finally, Insert The Dwarf Signals Into The Layout Where Required And Insert The Fibers Into The Snap Controller.

Each N Dwarf Signal Is: 12Mm Tall And 3Mm Wide.

Condition: Factory New (

C-9

)
Operational Status:

Functional

Original Box: Yes (

P-9

)

Manufacturer: Dwarvin
Model Number: Dvtsb2-2Np

Scale/Era: N Scale
Model Type: Accessories

The Trainz Sku For This Item Is P12642645.

Trainz Product Id: 12642645
