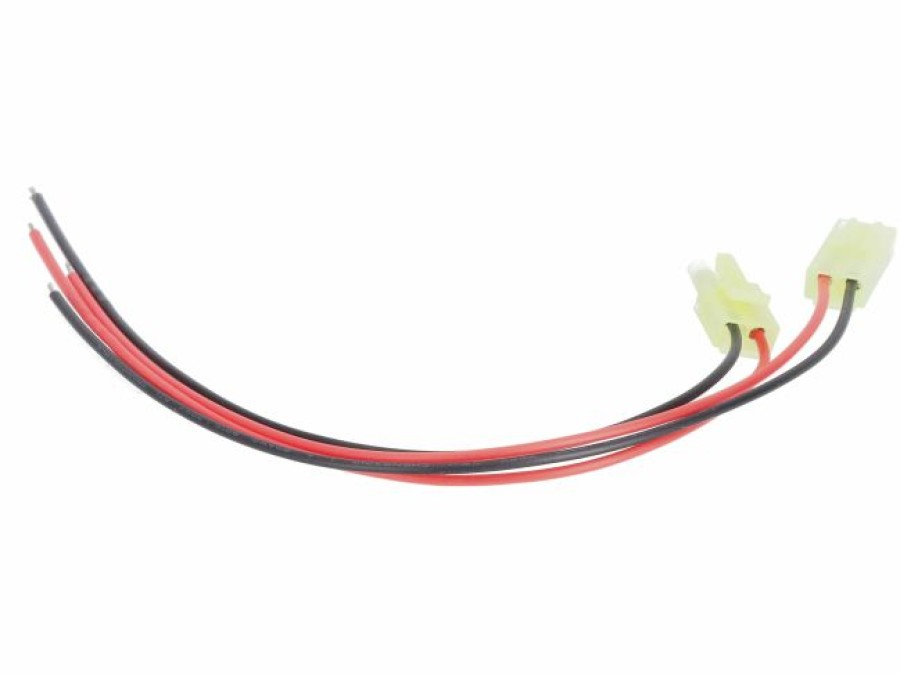

These Are The Kato Turnout Connection Cables
This Item Is One Component Used With The
Dwarven Integrated Turnout Signal Systems Snap Bipolar 2 Wire
To View The Other Components Of The System And Installation, Click On The Following Links
-How It Works
-Types Of Lighting Systems
-All About Fiber Cables
This System Is Designed To Integrate With Your Snap Bipolar 2 Wire Switch Machines, Most Notably The
-Kato
-Rokuhan
-Rapido Trains, And
-Any Others Using 2 Wire Snap Machines.
A Unique Feature Designed Into This System Is That It Remembers The Direction Of The Turnout From The Last Time It Was Used, Even When Power Has Been Interrupted.
Another Unique Feature Is That It Can Be Used With Either Ac Or Dc Power, Directly From The Turnout Power! You Can Also Cascade Each Controller So That You Only Need To Power One And All Are Powered.
The Assembly Couldn’T Be Simpler:
Connect 2 Wires From The Left Hand 2 Socket Connector On The Dwarvin Snap Controller To The Snap Machine Switch Control Unit No Soldering Needed.
Add Power To The Dwarvin Snap Controller Either Using A 9V Supply (Barrel Connector) Or Directly From Your Ac Or Dc Bus Via The 2 Socket Connector On The Right Hand Side Of The Unit.
Finally, Insert The Dwarf Signals Into The Layout Where Required And Insert The Fibers Into The Snap Controller.
Each Ho Dwarf Signal Is: 14.9Mm Tall (Above The Layout) And 6.7Mm Wide.
Condition: Factory New (
C-9
)
Operational Status:
Functional
Original Box: Yes (
P-9
)
Manufacturer: Dwarvin
Model Number: Dvtsb2-Kc
Scale/Era: Lighting Systems
Model Type: Hardware & Power
The Trainz Sku For This Item Is P12642642.
Trainz Product Id: 12642642
