Model Trains * | Trainz Custom Dc / Ac 13 Circuit Power Supply And Control Panel Ex

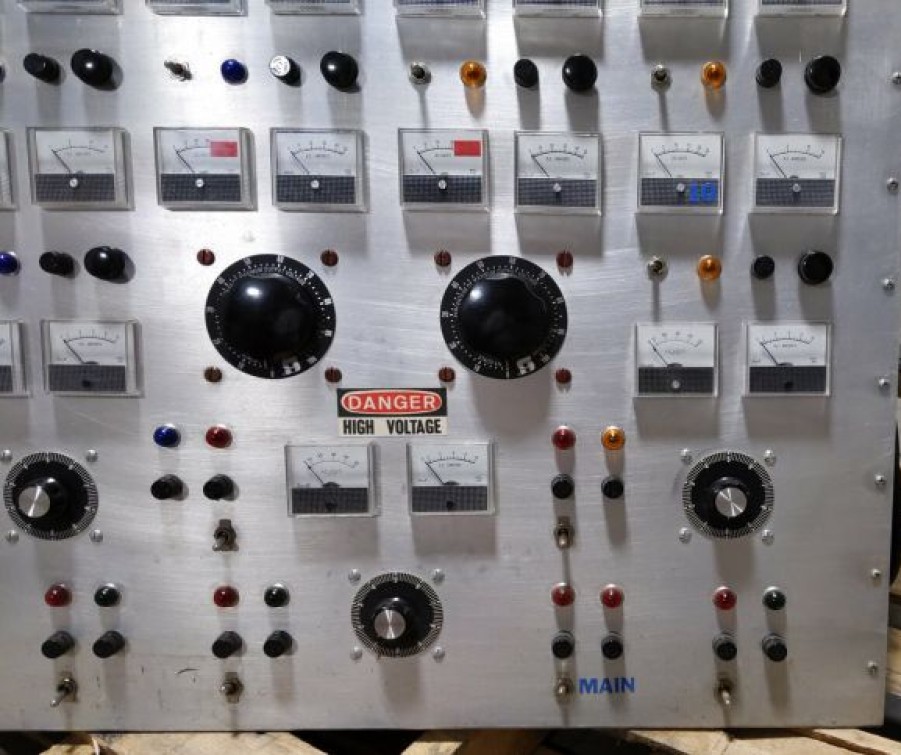

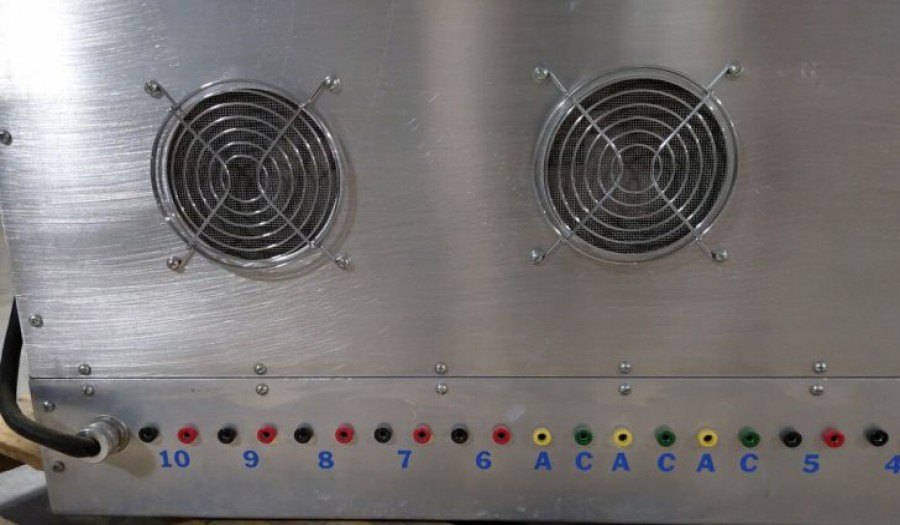

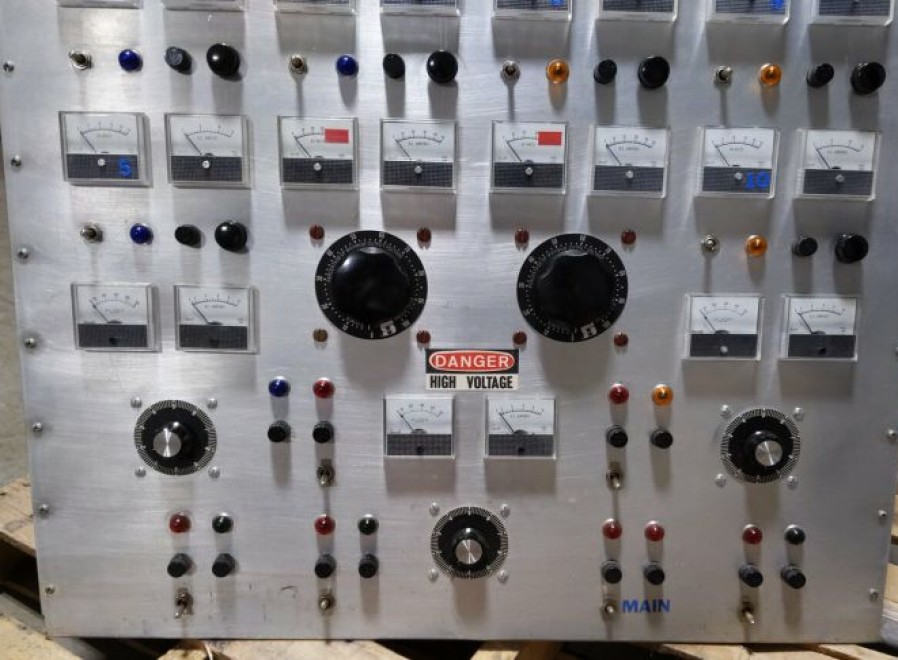

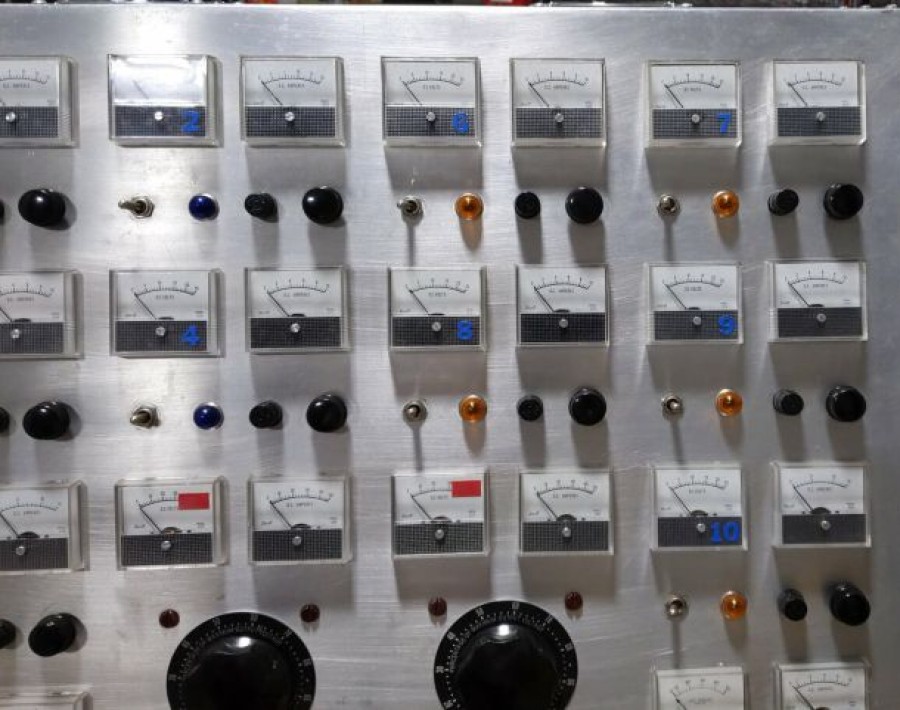

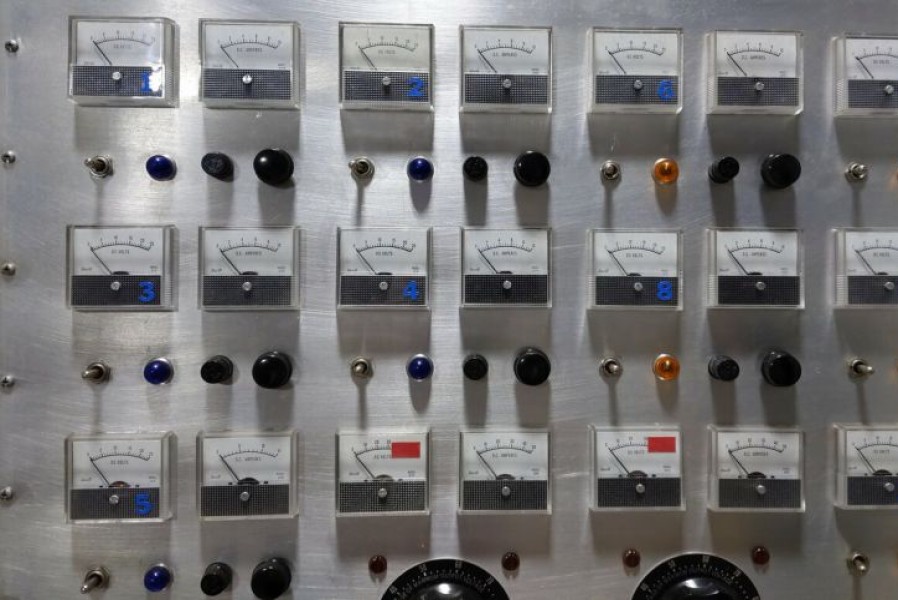

This Is The Biggest And Badest Dc Power Supply That We Have Ever Seen. 10 Dc Outputs All With Volt And Ammeters. This Massive Power Supply And Control Panel Has 13 Outputs, 10 Dc And 3 Ac. The Dc Outputs Have A Max Output Voltage Of 30 Volts, The Ac Outputs Have A Max Voltage Of 50 Volts. The Transformer Is Split Between Left And Right Side For Master Power Dials And Switches That Control All Outputs On That Given Side. All Dc Outputs Have Polarity Switches, And All Outputs Have Pilot Lights And Are Fused. There Are Potentiometers At All Ac And Dc Outputs For Individual Output Control. The Switch On The Bottom Right Labeled Main Is The Power Switch For The Entire Power Supply. The Dimensions Of This Unit Are 30In X 16In X 30In.

This Item Has Been Graded Per Tca Standards C-7: Excellent. There Are Some Nicks And Light Scratches On This Transformer. This Transformer Has A Light Dusty Basement Debris On It. The Overall Appearance Of This Item May Be Improved With A Gentle And Thorough Cleaning. The Instruction Manual Is Not Included. Please See My Pictures For More Information On This Item And It’S Condition. Overall Condition Is Excellent.

Condition: Excellent (C-7)
Operational Status: Functional
Original Box: No

Road Name: **** No Road Name

Scale/Era: G Scale
Model Type: Transformers

The Trainz Sku For This Item Is 5222789.
